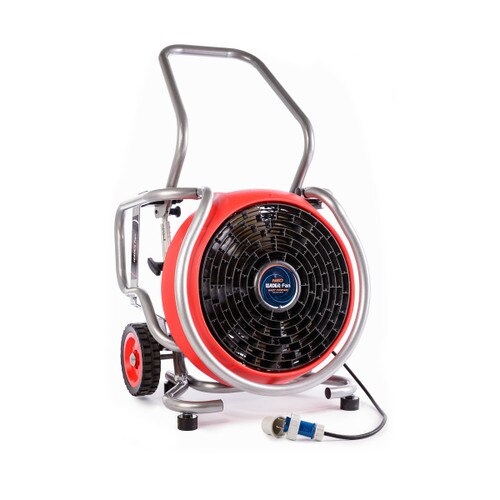

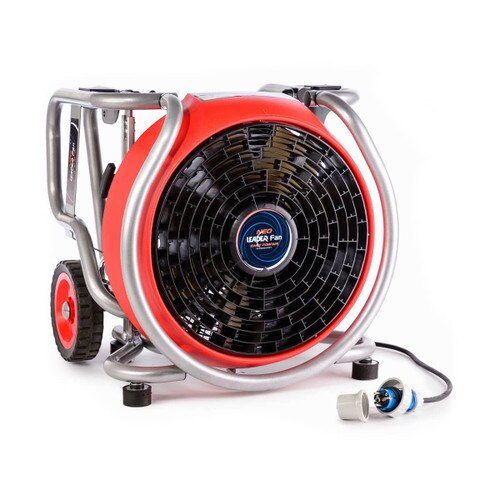

NEO Leader Fan EVG230

(0)No Reviews yet
SKU: I63.10.042N-TEMPEST
$3,387.99

Details

A veryconcentrated and ultra-powerful jet of air due to an optimal combination of:
  • A high-strength propeller matched to the power of the engine
  • A red double-layer monobloc shroud made of reinforced high-density polyethylene
  • A high-tech composite grille
Positioning from 3 ft to 20 ft in front of a door without loss of power for:
  • more space to move about
  • less noise inside the building
Other Features:
  • Automatic optimal +10° tilt when handle raised
  • Precise tilt adjustment from +10° to +20° for optimization of direction of air stream up entrance steps
  • Protective frame with grey epoxy coating
  • Stable & easy to handle with large rear wheels
  • Compact for easy storage in vehicle trunks
  • Open air flow: 17,010 CFM
  • Air flow according to AMCA: 11,625 CFM
  • Weight: 78.3 lbs
  • Dimensions L x H x P: 21.6 x 22 x 19.3 inches
  • Propeller diameter: 16.5 inches
  • Engine:
    • 1.1 kW with variable speed drive GFCI compatible – IP55
    • Runs on 15 A circuit breaker and compatible with GFCI circuit breaker
  • Power supply: Single phase - 115V±10% 50/60Hz
  • Electrical safety: Meets EN 50178 for user safety (leakage current less than 3.5 mA)
  • Power consumption in steady operation: 13.9 A
  • Mains plug: US male plug – 110 V
  • Noise level: 85,2 dB at 10 ft
  • Ventilation type: Blowing – VPP
  • Application: Single door – houses, small apartment blocks
