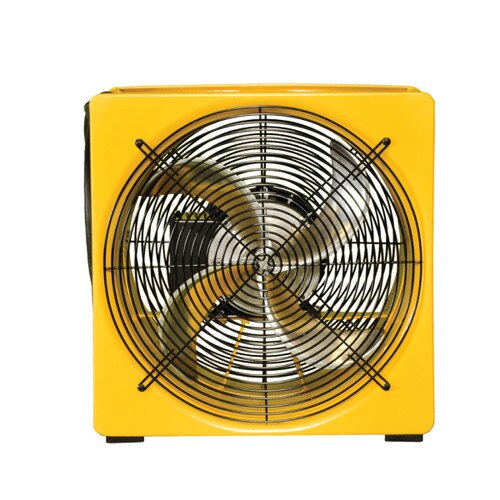

Super Vac 16" Fan, 1.5 Hp, Haz. Loc. High Speed Motor
Details
The HF164E is a 16″, electric, high-single-speed, confined space fan designed for high power air movement for the toughest of jobs. Perfect for users with the need to force or pull air deep into a structure or underground with hazardous or unknown gasses. The HF164E is powered by a motor rated for Class 1 Group D environments.
Features
Specifications
Features
- Patented 4-tip recurve Aluminum Blade – extremely durable
- Precision Balanced Blade – maximizes output
- Rubber Feet – heavy duty rubber adds friction to keep fan in place
- 4 Carry Handles – makes transportation easy with 1 or 2 people
- Front and Rear Guards – prevents accidental contact with key components
Specifications
| Blade Size | 16" |
| Weight | 63 lbs / 28.5 kg |
| Motor | Bluffton, single speed, hazardous location rated for Class 1 Group D, 1-1/2 HP, 50/60Hz, 115/230V AC |
| Fan Size | 19.25″ x 18.75″ x 13″ / 490 mm x 480 mm x 330 mm |
| RPM | 3,450 |
| Start | 6,000 w / 20-amp circuit |
| Run | 2,100 w |
| Output | 9,620 cfm / 16,345 cmh |
