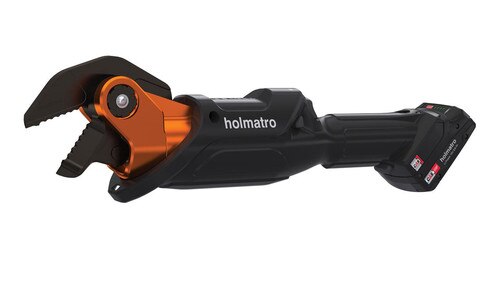

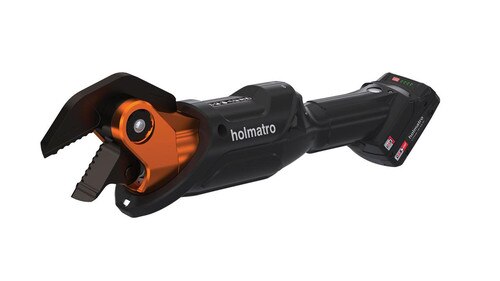

Holmatro Mini Cutter CCU10
Details
The first cordless Mini Cutter: compact, versatile and immediately ready for action. This cordless tool makes any rescue set complete.
Standard supplied with:
Features
Cordless design
Compact, lightweight and versatile
Smart battery technology
Optimal tool control
Unique inclined cutter jaw
Grip teeth on both blades
Integrated LED lighting
Ergonomic design
Specifications
Standard supplied with:
- i-Bolt Technology
- Integrated LED lighting
- Two 18V 2Ah batteries CBPA182
Features
Cordless design
- Immediately ready for use
- Maximum operational freedom
- No more pumps and hoses needed in your rescue set - Saves space and weight on the rescue vehicle
- No emissions - For safe indoor use and USAR applications
Compact, lightweight and versatile

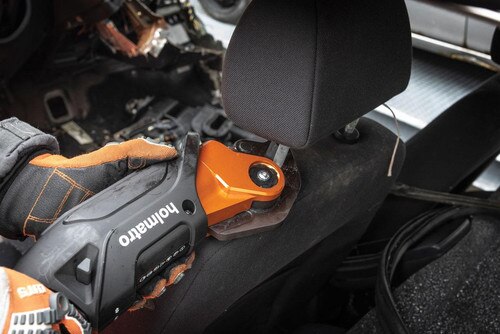

- Suitable for many applications such as cutting car pedals, head restraints and steering wheels. Also for cutting rebar (USAR), fences, steel bars, wooden bars and chains (grade 43)
- Easy to pick up and carry
- Easy to use in confined spaces
Smart battery technology
- State of charge indication on the battery – For easy checking of your battery status
- Efficient drive technology – Up to 70 cuts with one 2Ah battery
- Inclined battery position – For easy switching of batteries
- Part of the Cordless Alliance System (CAS) – Battery compatible with other tools that use this platform
Optimal tool control
- Start-stop mode – Push the control button to activate the tool. Release the button and the tool stops, which saves valuable battery time. Restart the tool by simply pushing the control button.
- Variable speed control – Lightly push the control button for low speed. Push the button further down and the speed increases.
- Control slide – To switch between opening and closing the tool
Unique inclined cutter jaw
- More freedom in positioning the tool

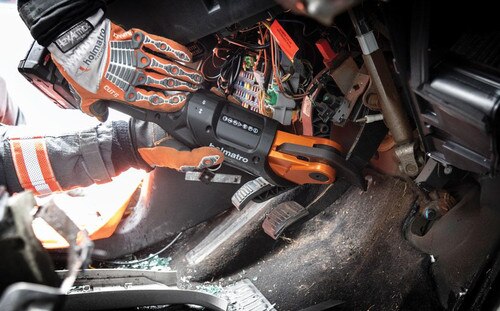

- For easy access to car pedals
Grip teeth on both blades
- For extra bite when cutting
- To prevent wider materials from being pushed out of the blades
Integrated LED lighting
- Ensures a well-lit working space
- Powered by the main battery - LED-light automatically switches on and off with the tool
Ergonomic design
- Easy one-handed positioning
- Easy operation, also with gloves on
- For both left- and right-handed operators
Specifications
| Article Number | 151.001.500 |
| Model | CCU10 |
| Max. Working Pressue | 720/72 (bar/mpa) |
| Battery Included | Yes |
| Max. Cutting Opening | 2.3 in |
| Protection Rate | IP54 |
| Directives | 2006/42/EG , 2014/30/EU |
| Theoretical Cutting Force | 220/22.4 (kN/t) |
| Cutter Jaw | Inclined |
| Weight, ready for use | 10.8 lbs |
| Weight excl. Battery | 9.9 lb |
| Dimensions (AxBxC) | 21.8 x 6.1 x 3.6 in |
| EN13204 classification | AC59B-4.9 |
| NFPA 1960, cutting capacity | A4 B3 C2 E4 |
| NFPA 1960 Compliant | Yes |
| EN 13204, cutting capacity | 1D 2D 3C |
| EN 13204 Compliant | Yes |
| Round Bar (S235 acc. to EN 13204) | 0.9 in |
