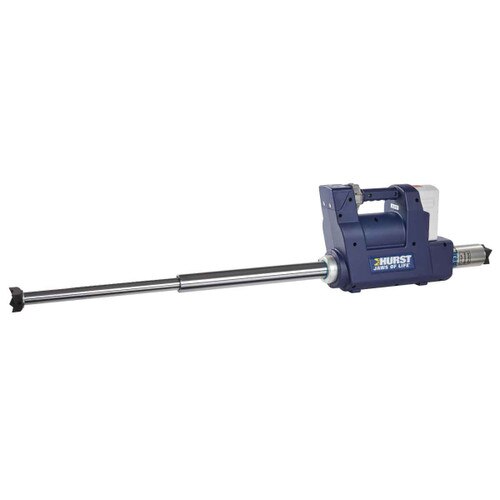

Hurst R 522 E3 Ram

(0)No Reviews yet
SKU: 274886000-1-HURST


The new R 522 E3 ram performs brilliantly on land and off. With up to 59.2 inches of extension in length, you’ll have plenty of space to perform an efficient rescue in a limited time. This cordless ram is your go-to for all kinds of rescue missions — land or water, salt or fresh.

  • Durable in fresh and salt water with its watertight design
  • Smart dashboard displays live visual tool feedback
  • Power levels and battery charge status at a glance
  • Detects and reveals when a saltwater-capable battery has been installed
  • New turbo function allows for a faster rescue
  • Brushless DC electrical motor runs efficiently with a high performance for a long battery life
  • Quieter
  • Two LED lights illuminate the front of the tool
  • Large waterproof battery (9Ah) with IP68 protection class
  • Sharp claws that rotate 360 degrees

Technical Data
Length Retracted: 24.7 in / 627 mm
Length Extended: 59.2 in / 1,503 mm
Width: 5.51 in / 140 mm
Height: 12.9 in / 327 mm
Weight: 44.8 lbs / 20.3 kg
Stroke Piston 1: 17.8 in / 451 mm
HSF Piston 1: 28,600 lbs / 127 kN
Stroke Piston 2: 16.7 in / 425 mm
HSF Piston 2: 13,500 lbs / 60 kN
Stroke Overall: 34.5 in / 876 mm
NFPA 1936 2020 Compliant: Yes
Tool IP Rating: IP58


MES specializes in the service and maintenance of your Hurst Rescue Tools to keep your equipment compliant and ready for the task. Our service technicians can inspect and repair Hurst Rescue Tool products on-site with our state of the art mobile service centers.

  • Deficiencies will be noted
  • Repairs completed
  • & Adjustments made on-site

Contact your local MES sales representative to learn more! 1.877.MES.FIRE.

Territory Restrictions Apply
